利用Django在前端展示Oracle 状态趋势

2017-12-15 Python 宅必备

开发环境

操作系统:CentOS 7.4

Python版本 :3.6

Django版本: 1.10.5

操作系统用户:oms

数据处理:pandas

前端展示:highcharts

通过上面我们已介绍了如何定时获取系统Oracle状态语句以及如何利用pandas处理成highcharts识别的格式

这节讲如何让其在前端显示

建立页面的步骤

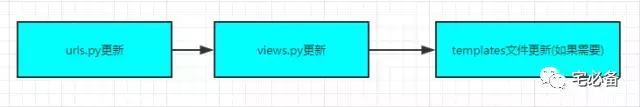

我们还是通过这张图的步骤来说明如何建立页面

Alt text

1. urls.py页面

from django.conf.urls import  url, include
from monitor import views

urlpatterns = [
    url(r'^$', views.index, name='index'),
    url(r'^oracle_command/$',views.oracle_command, name='oracle_command'),
    url(r'^commandresult/$',views.commandresult, name='commandresult'),
    url(r'^oracle_status$',views.oracle_status, name='oracle_status'),
    url(r'^oracle_performance$',views.oracle_performance, name='oracle_performance'),
    url(r'^performance$',views.performance, name='performance'),
    url(r'^oracle_topevent$',views.oracle_topevent, name='oracle_topevent'),
    url(r'^check_topsql$',views.check_topsql, name='check_topsql'),
    url(r'^addbaseline$',views.addbaseline, name='addbaseline'),
    url(r'^check_hitratio$',views.check_hitratio, name='check_hitratio'),
    url(r'^linux_list$',views.linux_list, name='linux_list'),
]

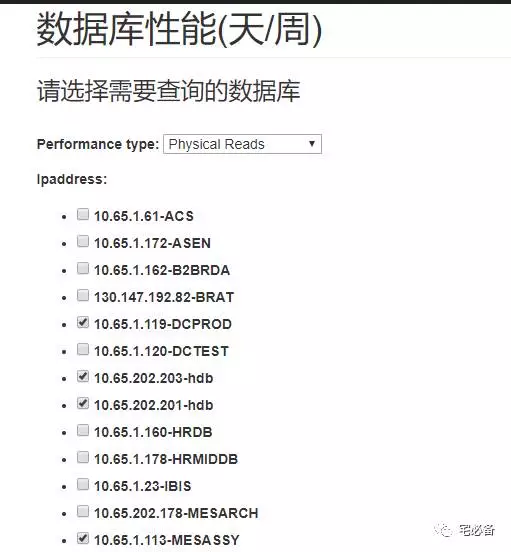

oracle_performance分别为系统状态趋势的页面(以天为单位)

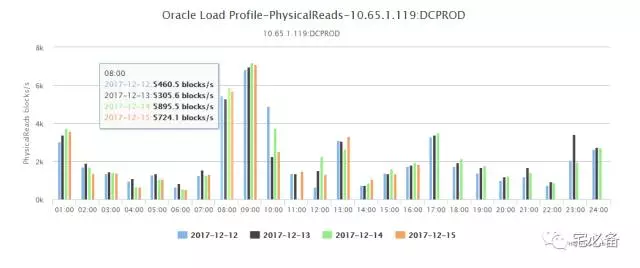

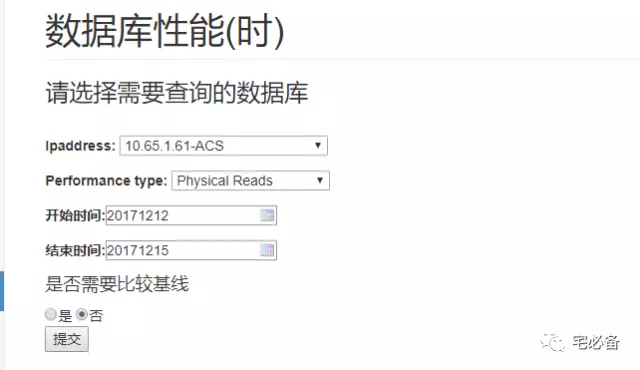

performance分别为系统状态趋势的页面(以小时为单位)

2. views.py

这里以oracle_performance函数做例子讲解

def oracle_performance(request):
    baseline=[]
    ip=[]
    ip1=oraclelist.objects.all().order_by('ipaddress')
    for i in ip1:
        ip.append(i.ipaddress+':'+i.tnsname)
    if request.method == 'POST': # If the form has been submitted...
        #return HttpResponse('ss')
        form = charts_oracle_performance(request.POST) # A form bound to the POST data
        if form.is_valid(): # All validation rules pass
            starttime1  = request.POST['starttime']
            endtime1  = request.POST['endtime']
            performance_type= form.cleaned_data['performance_type']
            ipaddress_tnsname_list=form.cleaned_data['ipaddress']
            interval=request.POST['interval']
            if starttime1 =='' or endtime1 =='':
                return HttpResponse('Please give the Start and End time')
            else:
                starttime=int(str(time.mktime(time.strptime(starttime1,'%Y%m%d'))).split('.')[0])
                endtime=int(str(time.mktime(time.strptime(endtime1,'%Y%m%d'))).split('.')[0])
            if  starttime>endtime:
                return HttpResponse('The Start time must larger than the End time')
                #starttime=int(str(time.mktime(time.strptime(starttime1,'%Y%m%d %H:%M:%S'))))
                #endtime=int(str(time.mktime(time.strptime(endtime1,'%Y%m%d %H:%M:%S'))))
            else:
                    title='Oracle Performance '+'-'+performance_type
                    subtitle=performance_type
                    title_y=' Blocks/Seconds'
                    if performance_type in ['PhysicalReads','LogicalReads']:
                        unit='blocks/s'
                    elif performance_type in ['RedoSize']:
                        unit='bytes/s'
                    elif performance_type in ['DBTime','CPUTime']:
                        unit='Minites'
                    else:
                        unit='times/s'
                    final_series=[]
                    #final_series=oracle_performance_day(performance_type,ipaddress_tnsname_list,starttime,endtime,interval)
                    #return HttpResponse(final_series)
                    if interval=='day':
                        final_series=oracle_performance_day(performance_type,ipaddress_tnsname_list,starttime,endtime,interval)
                        x_categories=final_series[0]['x']
                    elif interval=='week':
                        final_series=oracle_performance_week(performance_type,ipaddress_tnsname_list,starttime,endtime,interval)
                        x_categories=final_series[0]['x']
                    #return HttpResponse(final_series)
                    dic={'categories':x_categories,'series':final_series,'title':title,'subtitle':subtitle,'unit':unit,'title_y':title_y}
                    #return render_to_response('highcharts_histogram.html',dic) # Redirect after POST
                    #return HttpResponse (final_series)
                    return render_to_response('highcharts.html',dic) # Redirect after POST
        else:
           return render(request, 'oracle_performance.html', {'form': form})
    else:
        form = charts_oracle_performance() # An unbound form
        d1=datetime.datetime.now()
        etime= d1.strftime("%Y%m%d")
        stime=(d1-datetime.timedelta(hours=720)).strftime("%Y%m%d")
        #etime= d1.strftime("%Y%m%d %H")
        #stime=(d1-datetime.timedelta(hours=24)).strftime("%Y%m%d %H")
        dic={'form':form,'etime':etime,'stime':stime}
        #dic={'form':form,'ip':ip,'ipaddress_checked':ipaddress_checked,'etime':etime,'stime':stime}
        return render(request, 'oracle_performance.html', dic)

上面的url设定调用views.py里面的oracle_performance函数，该函数讲解如下:

首先判断请求的方法是不是post(提交表单前)，如果不是则打开oracle_performance.html页面，charts_oracle_performance为定义的表单，可在forms.py中定义
如果请求方法为post(提交表单后)，首先验证输入是否正确，如果正确则获取相应的ipaddress,tnsname,performance_type等信息,
接下来根据performance_type的类型(物理读，逻辑读等)调用monitor/command/views_oracleperformance.py文件里面的方法来得到我们想要的数据，这个方法的讲解在昨天的公众号，大家可自行查看
最后我们将TOP SQL相关的内容封装成字典重定向到相应的template文件中

3. template文件

这里我们使用highcharts.html文件来显示趋势图

<div id='newadd'>
<script>
$(function () {
    $('#container').highcharts({
        title: {
            text: '{{title|safe}}',
            x: -20 //center
        },
        xAxis: {
            categories: {{categories|safe}}
        },
        yAxis: {
            title: {
                text: '{{unit}}'
            },
            plotLines: [{
                value: 0,
                width: 1,
                color: '#808080'
            }]
        },
        legend: {
            layout: 'vertical',
            align: 'right',
            verticalAlign: 'middle',
            borderWidth: 0
        },

         plotOptions: {
            series: {
                cursor: 'pointer',
                point: {
                events: {
                    click: function(e) {
                         $("#test3").val(this.y+'s'+this.x);
                        //上面是当前页跳转，如果是要跳出新页面，那就用
                        //window.open(e.point.url);
                        //这里的url要后面的data里给出
                }
                }

            },
            }
           },


        series:[
                {% for i in series %}
                {
                    name: '{{i.name}}',
                    data: {{i.data}}
                    },
                {% endfor %}
                ]
        });
});
</script>
</div>

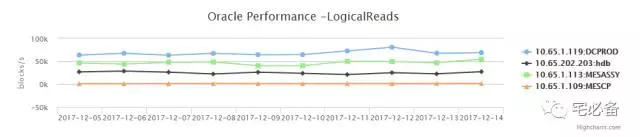

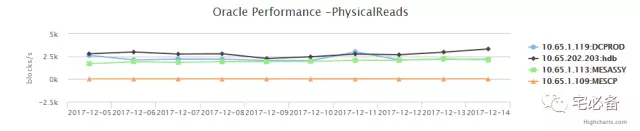

这里通过highcharts来展现数据库性能趋势状态

Django允许在html文件内部使用程for循环的形式来迭代列表

关于oracle_peforance页面就说到这了，performance页面可自行参考源码
